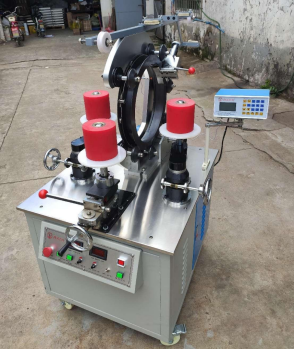

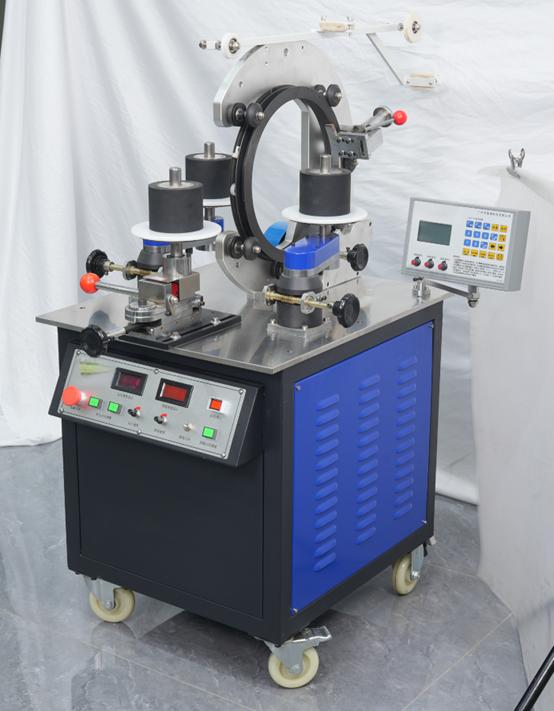

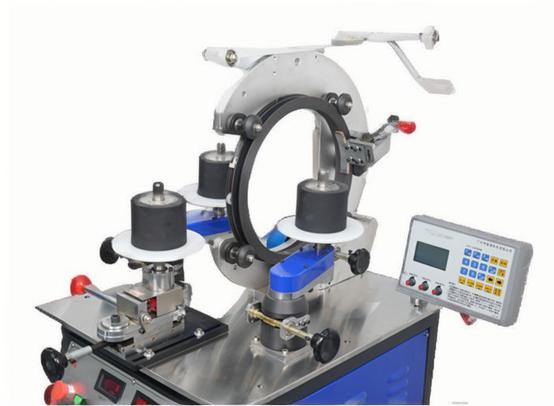

LY3107L Low-noise gear-type medium speed toroidal coil winding machine
SPECIFICATION:Main technical parameters table: (Unit: mm)
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 80-450mm |
Minimum completed inner diameter | 35 mm |
Maximum completion height | 150 mm |
Suitable winding diameter range | 1.0-3.0 mm |
Width of storage loop | 8-20 mm |
Perimeter of storage loop | 1050 mm |
Maximum speed | 230 rpm |
Pre programmable program | 50×20 Group |
Overall dimensions | 850 x 600 x 1200 mm |
Total machine weight | 158 KG |
Working Voltage | 220 V/50 HZ |
Main technical features:
▶ The spindle is driven by a variable frequency motor, which is energy-saving and capable of infinite speed regulation.
▶ The wiring system adopts a servo stepper motor intelligent automatic wiring control system. Simply input the number of turns and arrangement angle of the winding into the controller, and the equipment will automatically calculate and accurately wire the wiring action according to the requirements; The winding process can be paused or operated by
tapping at any time.
▶ Powered by a 220V single-phase power supply, convenient for use in various locations.
▶ The winding tension can be adjusted and maintained at any time during standby and winding process.
▶ It has automatic operation, foot pedal speed regulation, and power-off memory function.
▶ Adopting the latest microcomputer full Chinese LCD display controller, it has practical functions such as multi-stage cable density adjustment, separate setting of storage/winding
speed, and output statistics.
▶ The controller can store up to 1000 sets of work steps and 50 specifications of transformer winding parameters, saving time for repeated machine adjustments when replacing
different products to be processed.
ADVANTAGE:
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability
