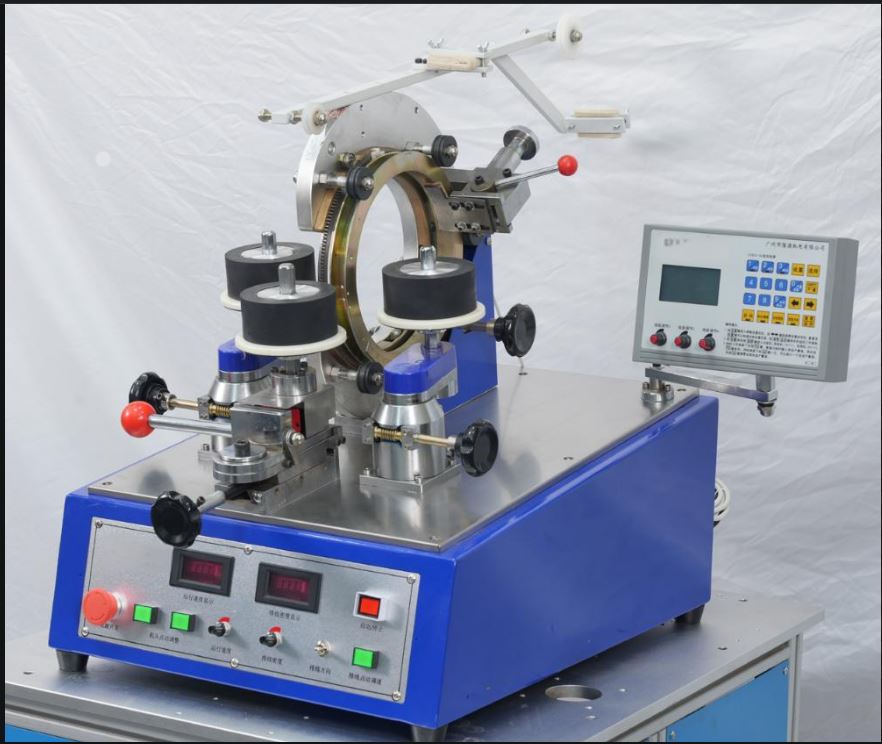

LY4731B Low-noise gear-type medium speed toroidal coil winding machine
SPECIFICATION:
Low-noise gear-type medium speed toroidal coil winding machine
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 70-200 mm |
Minimum completed inner diameter | 25 mm |
Maximum completion height | 80 mm |
Suitable winding diameter range | 0.7-2.0 mm |
Diameter of storage ring | 250 mm |
Width of storage loop | 5-18 mm |
Maximum speed | 230 RPM |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimensions | 500 x 600 x 750 mm（L*W*H） |
Total machine weight | 100 KG |
Equipment features
▶ Adopting energy-saving dual frequency conversion drive, energy-saving and
energy-saving, and capable of infinite speed regulation.
▶ The winding tension can be adjusted at any time during standby and winding process.
▶ It has automatic operation, foot pedal speed regulation operation function, and
automatic power-off saving function.
▶ Adopting the latest microcomputer full Chinese LCD display controller, it has
practical functions such as multi-stage cable density adjustment, separate setting
of storage/winding speed, etc.
