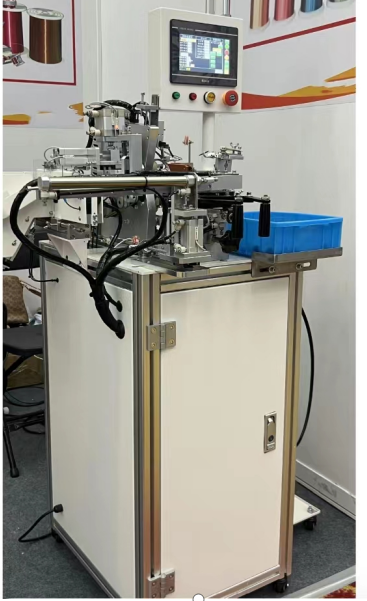

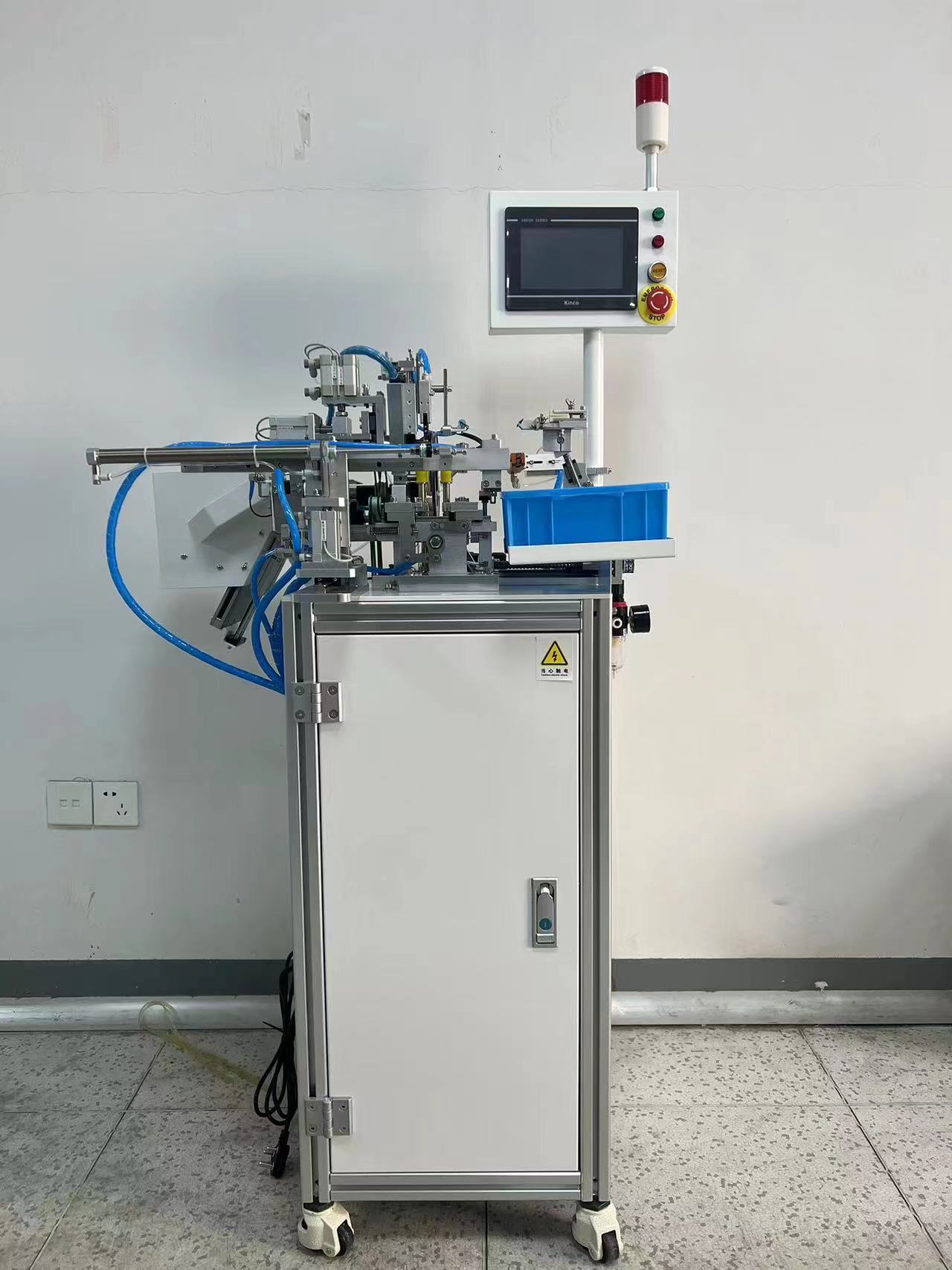

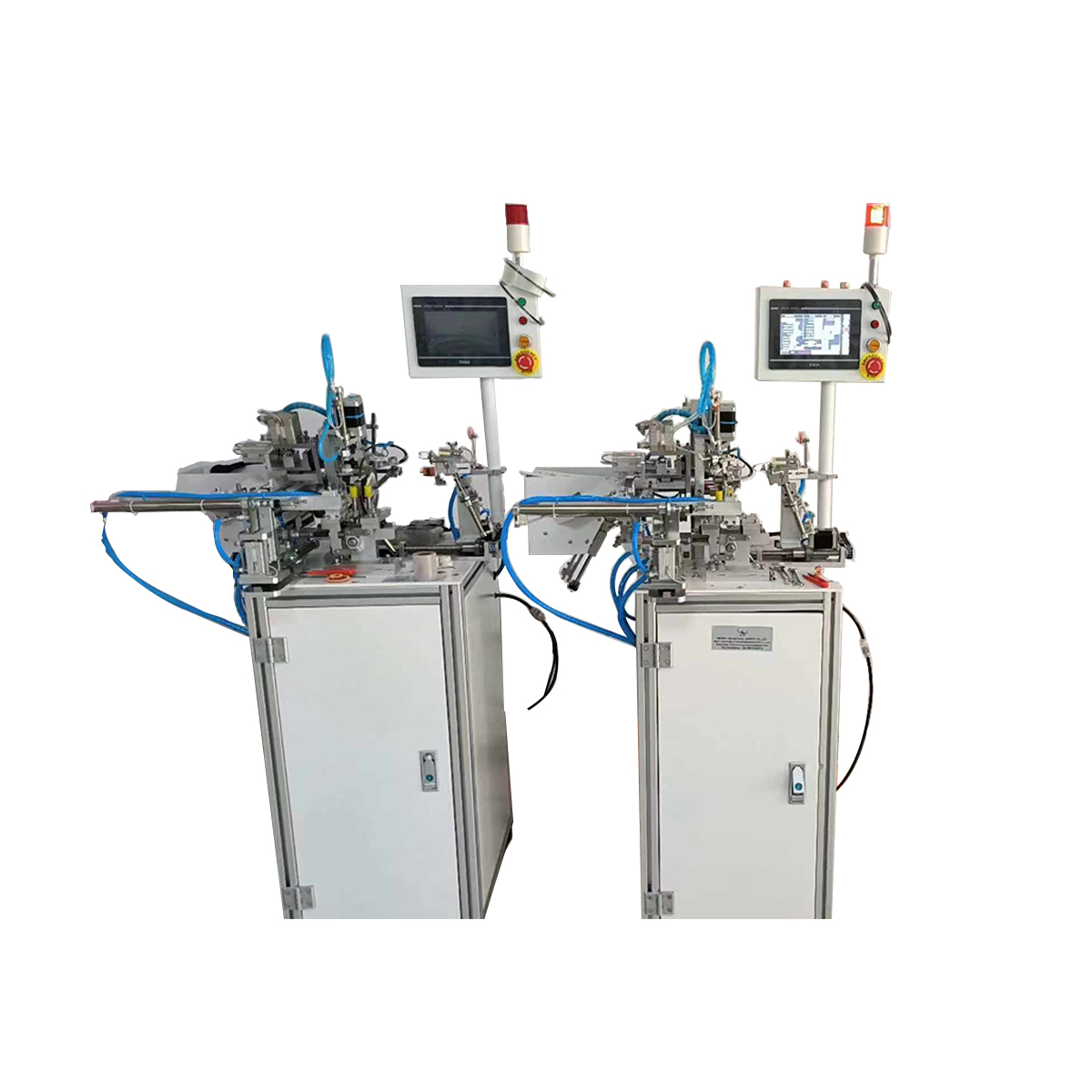

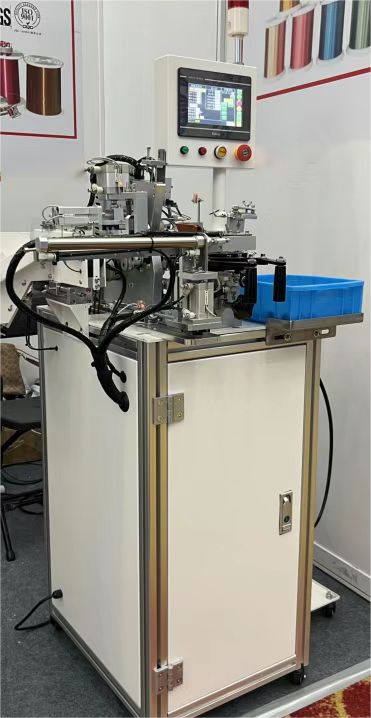

Intelligent automatic toroidal inductance winding machine
$9999.00
1. Intelligent automatic toroidal inductance winding machine using PLC man- machine interface control system, simple design and reasonable operation, suitable
for all kinds of ring coil production, a wide range of use, efficient and convenient, convenient installation and debugging and maintenance, the skill requirements of the
operator is relatively low simple requirements can be skilled operation.
2. The magazine and guide wheel can be replaced according to different product
needs. The device adopts the road type design with simple appearance, small, withthe servo motor drive action smooth, accurate and stable, all the transmission and
standard parts are made of well-known brands, durable life and stable performance.
3. Various winding methods can be customized according to different product
requirements (such as: double winding, secondary storage, etc.)
4. When there is a fault, the winding machine will automatically stop and alarm, and the alarm items will be displayed on the touch screen.
5. Configure the corresponding storage ring and guide wheel according to
customer requirements.
6. PLC can store a number of different winding modes, each device can adapt to
the winding requirements of multiple products, storage line, winding are double
pulse identification, and has the function of detection.
7. The device has a number of invention patents and utility model patents.
SPECIFICATION
Modle
power supply 220V/110V 50/60HZ
Leakage current 20MA
Air pressure 0.6Kpa-0.8Kpa
Maximum wire diameter 0.2mm
Minimum wire diameter 0.05mm
Maximum finished outer diameter 35mm
Minimum finished outer diameter 6mm
Maximum finished product height 20mm
Line spacing control Programming control
Sectional winding control Programming control
Cumulative winding control Programming control
Cable motor Hybrid stepping motor
Main motor servo motor
Winding speed Adjustable,the fastest equipment is 1400rpm
physical dimension 1100mm*900mm*1700mm
weight 72kg
