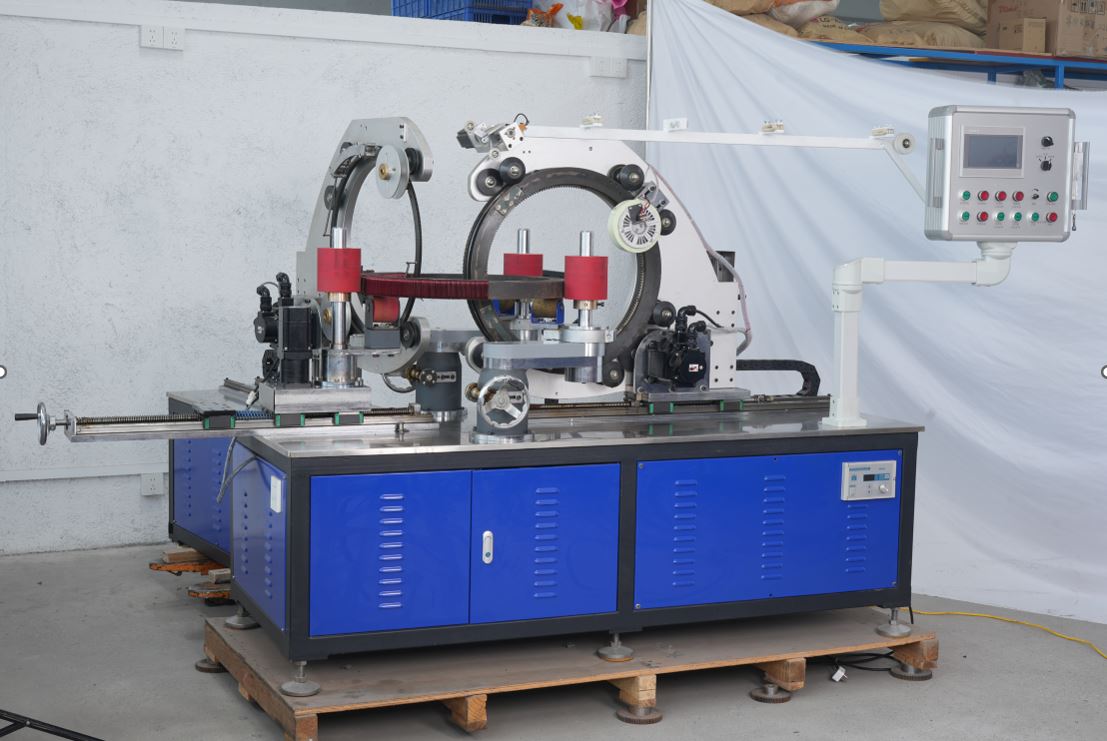

LY3180-5B Low-noise gear-type ring winding machine
SPECIFICATION:
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 350-1500 mm |
Single machine final completion of internal operation | 150 mm |
The dual machine finally completes the outer diameter | 1500 mm |
Dual machine final completion of internal management | 400 mm |
Maximum completion height | 350 mm |
Suitable winding diameter range | 1-7 mm |
Width of storage loop | 20-50 mm |
Maximum speed | 120 RPM |
Working Voltage | 250 V/50 HZ |
Total machine weight | 960 KG |
Pre programmable program | 50×20Group |
FEATURES：
▶ The spindle drive is driven by a servo motor, which is more precise, efficient, powerful, and noise reducing.
▶ The wiring system adopts the intelligent automatic control system of the Si Fu stepper motor. The equipment will automatically count and accurately wire the wiring according to the requirements. During the winding process, it can be paused or jog at any time.
▶ Powered by a 220V single-phase source, convenient for use in various locations.
▶ The winding tension is controlled by an electromagnetic motor, ensuring stable force.
▶ It has automatic operation, foot pedal speed regulation, and power-off memory function.

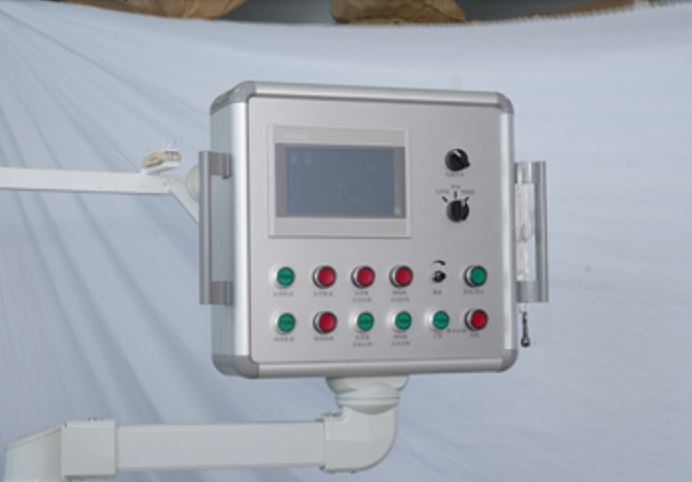

▶ Adopting the latest microcomputer Chinese LCD display, with multi-stage cable density adjustment.

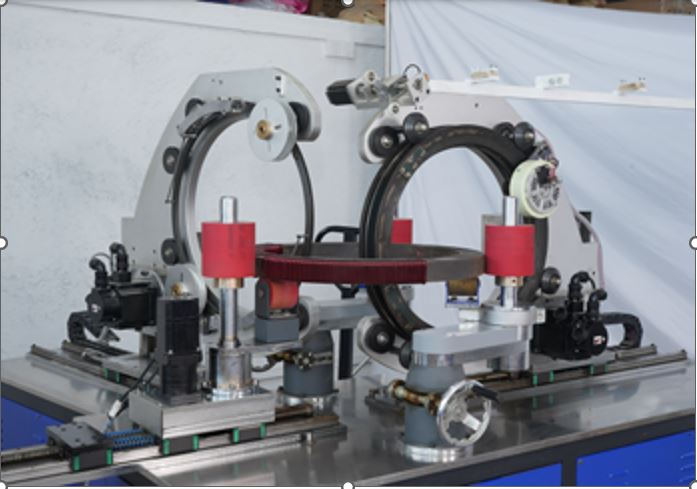

▶ The machine head can automatically move forward and backward, up and down, making it more convenient to lift and lower the iron core.
▶ Winding and wrapping can work separately or simultaneously, increasing efficiency.
