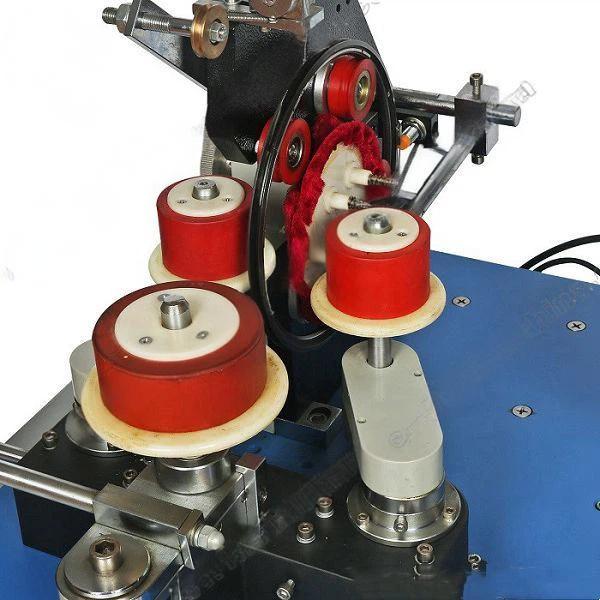

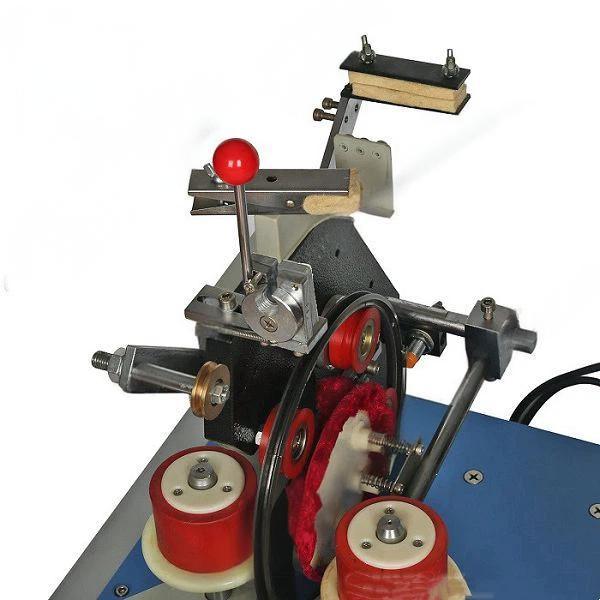

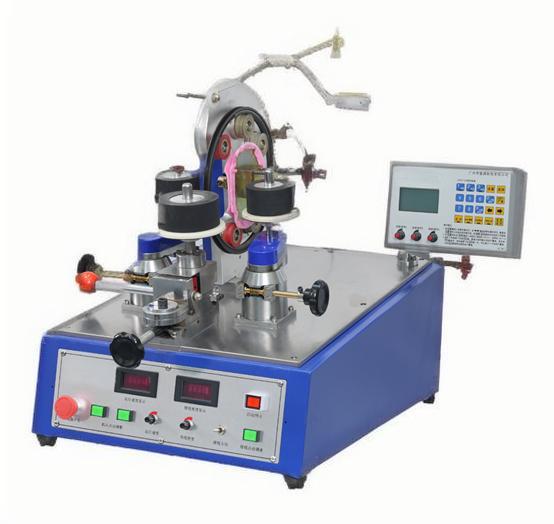

LY2700 Side sliding type toroidal coil winding machine
Description
SPECIFICATION:Main technical parameters table: (Unit: mm)
device type | toroid coil winding machine |
Winding method | Side sliding type |
Finally complete the outer diameter | 60/200 mm |
Minimum completed inner diameter | 25 mm |
Maximum completion height | 105 |
Suitable winding diameter range | 0.2-0.75 mm |
Diameter of storage ring | 230 mm |
Width of storage loop | 9-15 mm |
Maximum speed | 700 RPM |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimension | 500 x 600 x 750 mm（L*W*H) |
Total machine weight | 100 KG |
Equipment features
▶ Adopting the edge sliding winding method, it is suitable for winding products with thinner
wire diameters and more turns, such as primary coils of transformers, small transformer coils,
etc. It has high winding speed, is not easy to scratch paint, and is not prone to breakage.
▶ There are various types of wire suitable for winding, such as enameled copper wire,
enameled aluminum wire, steel wire, nylon wire, etc., which are suitable for coil processing of
products in various industries.
▶ The machine head is driven by a synchronous belt, which has the characteristics of low
operating noise, long service life, and maintenance free.
▶ The storage ring is driven by soft rubber wheels, which are not easy to slip or wear out,
making the equipment more durable.
▶ You can freely set the maximum winding speed according to the size of the wire diameter.
▶ Automatic rotation of wiring function during wiring, reserved lead position for transformer
products with a large number of turns.
▶ The maximum speed of storage and winding can be adjusted separately, which significantly
improves production efficiency when winding small wire diameter products and the winding
speed cannot be too fast.
▶ Multiple wire storage and winding can be set. For products with an additional number of
turns that cannot store enough wire, winding can be completed in one go.
▶ The cable density (speed) can be automatically changed when running different programs.
When winding products with multiple taps but different turns and the same cable angle/
requirements, it can be automatically completed
