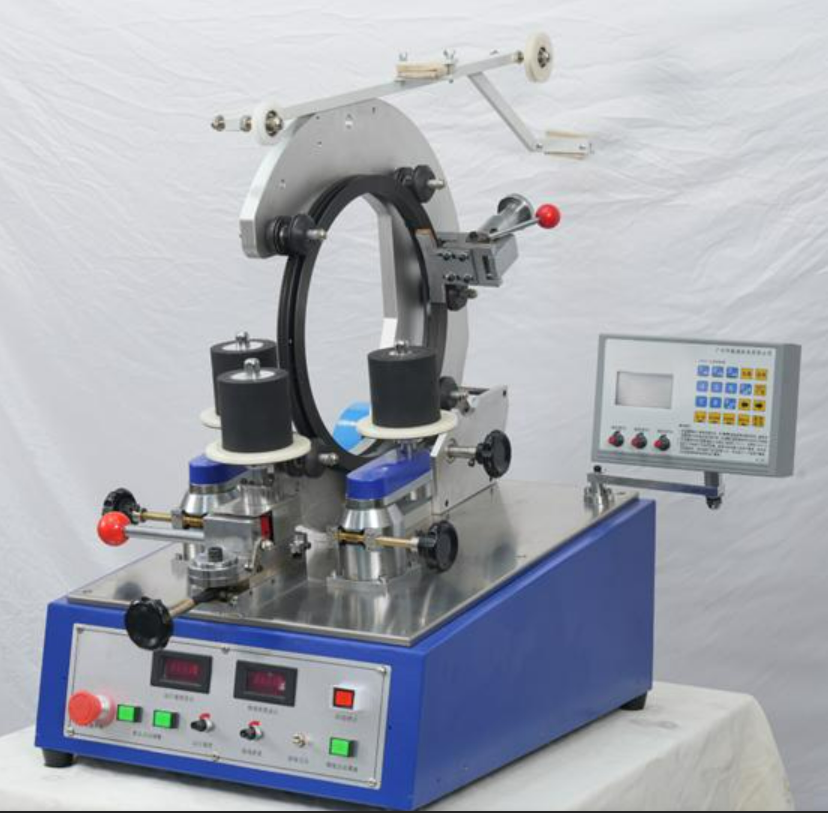

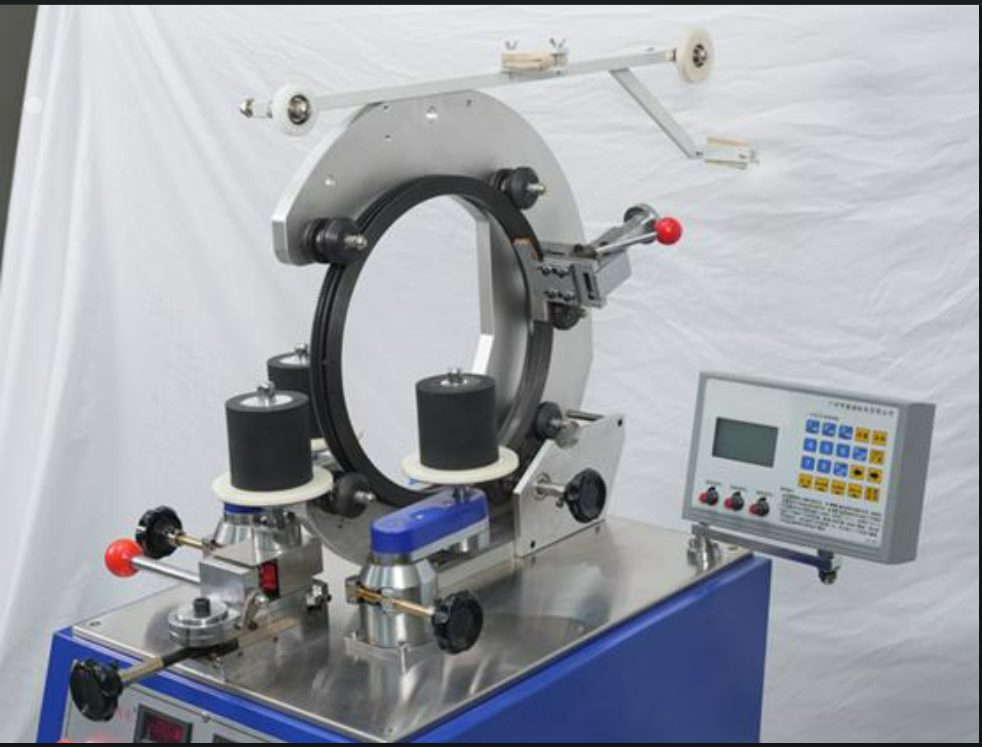

LY3107 Low-noise gear-type medium speed toroid coil winding machine
SPECIFICATION:Main technical parameters table: (Unit: mm)
LY3107 Low-noise gear-type medium speed toroid coil winding machine
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 80-200 mm |
Minimum completed inner diameter | 35 mm |
Maximum completion height | 150 mm |
Suitable winding diameter range | 1.0-2.8 mm |
Diameter of storage ring | 360 mm |
Width of storage loop | 8-25 mm |
Maximum speed | 200 rpm |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimension | 500 x 600 x 800 mm （L*W*H） |
Total machine weight | 130 KG |
Equipment features
▶ Adopting full tooth transmission, it has the characteristics of low operating noise, fast product clamping, large suitable winding diameter, compact and beautiful wiring arrangement. It is commonly used for winding secondary coils of transformers and products with high requirements such as transformers.
▶ There are various types of wire suitable for winding, such as enameled copper wire, enameled aluminum wire, steel wire, nylon wire, etc., which are suitable for coil processing of products in various industries.
▶ The machine head is driven by a synchronous belt, which has the characteristics of low operating noise, long service life, and maintenance free.
▶ The maximum winding speed can be freely set according to the wire diameter and product characteristics.
▶ Automatic rotation of wiring function during wiring, reserved lead position for transformer products with a large number of turns.
▶ The maximum speed of storage and winding can be adjusted separately, which significantly improves production efficiency when winding small wire diameter products and the winding speed cannot be too fast.
▶ Multiple wire storage and winding can be set. For products with multiple turns that cannot store enough wire, or products with multiple windings but different wire diameters, winding can be completed in one go.
▶ The cable density (speed) can be automatically changed when running different programs. When winding products with multiple taps but different turns and the same cable angle/requirements, it can be automatically completed.
