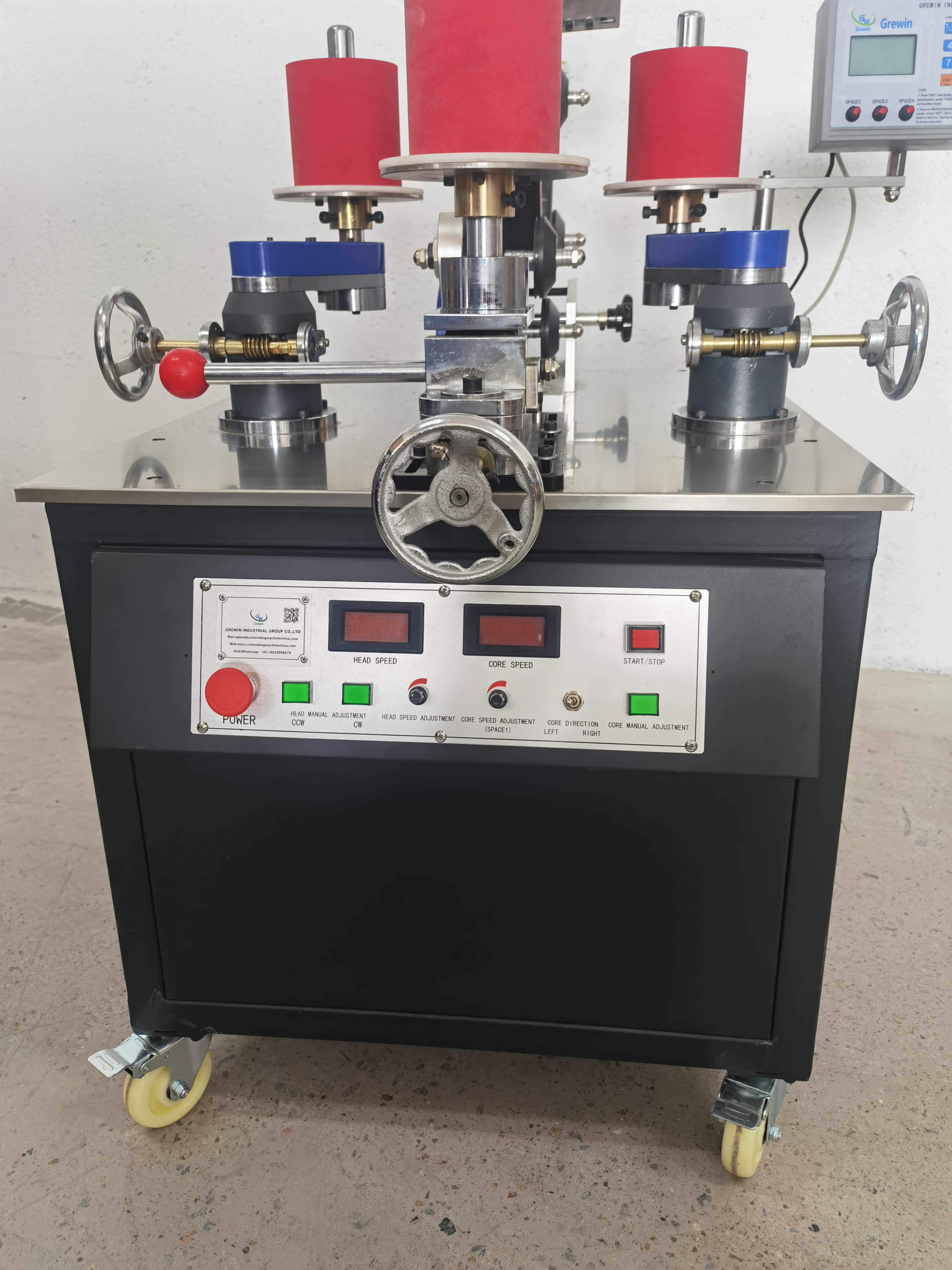

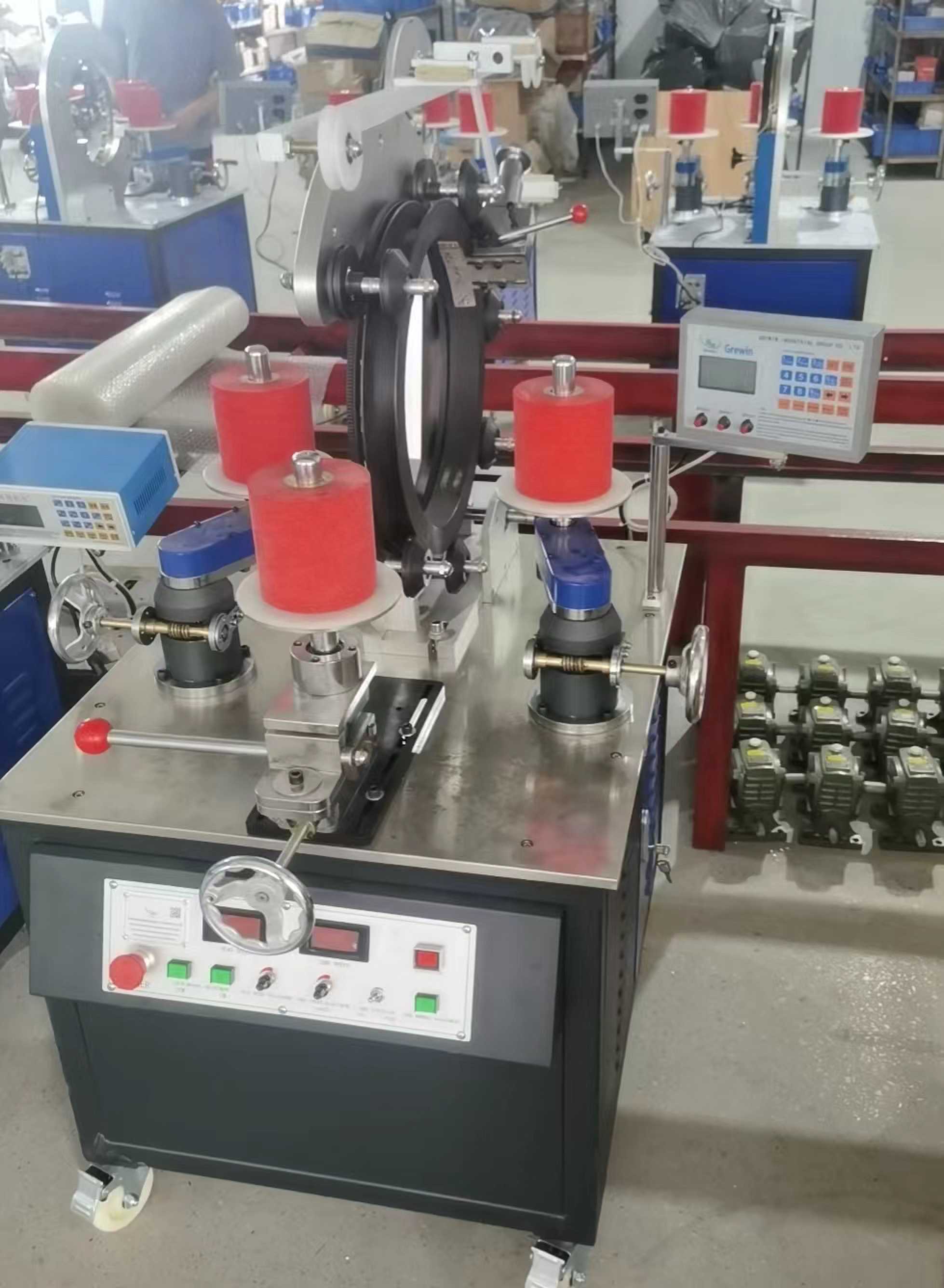

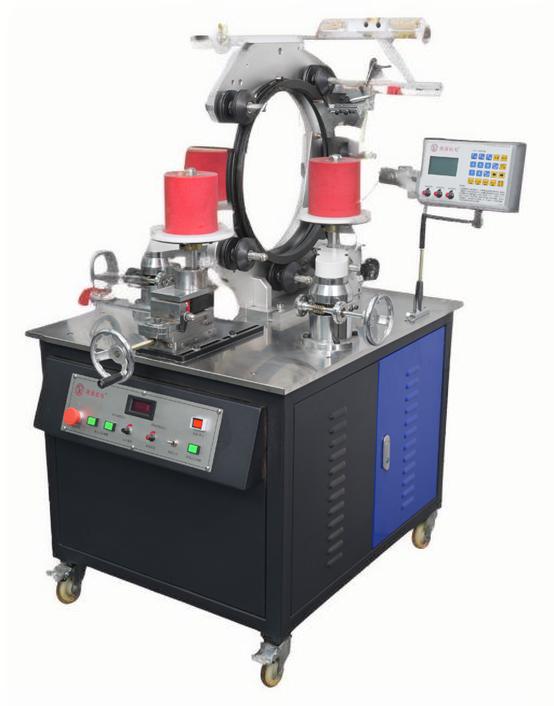

LY3120 Low-noise gear-type medium speed toroidal coil winding machine
SPECIFICATION:Main technical parameters table: (Unit: mm)
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 130-650 mm |
Minimum completed inner diameter | 50 mm |
Maximum completion height | 200 mm |
Suitable winding diameter range | 1.0-6.0 mm |
Diameter of storage ring | 440 mm |
Width of storage loop | 10-35 mm |
Maximum speed | 150 rpm |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimensions | 700 x 900 x 1400 mm（L*W*H） |
Total machine weight | 250 KG |
Equipment features
▶ The spindle is driven by a variable frequency motor, which is energy-saving and capable of infinite speed regulation.
▶ Powered by a 220V single-phase power supply, convenient for use in various locations.
▶ The winding tension can be adjusted and maintained at any time during standby and winding process.
▶ It has automatic operation, foot pedal speed regulation, and power-off memory function.
▶ Adopting the latest microcomputer full Chinese LCD display controller, it has practical functions such as multi-stage cable density adjustment, separate setting of storage/winding
speed, and output statistics.
▶ The controller can store up to 1000 sets of work steps and 50 specifications of winding parameters, saving time for repeated machine adjustments when replacing different
products to be processed.
