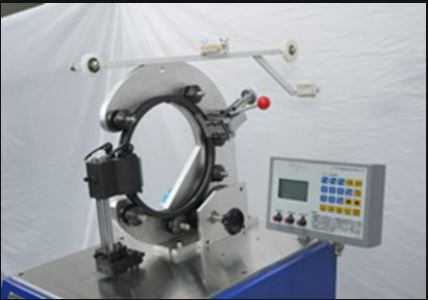

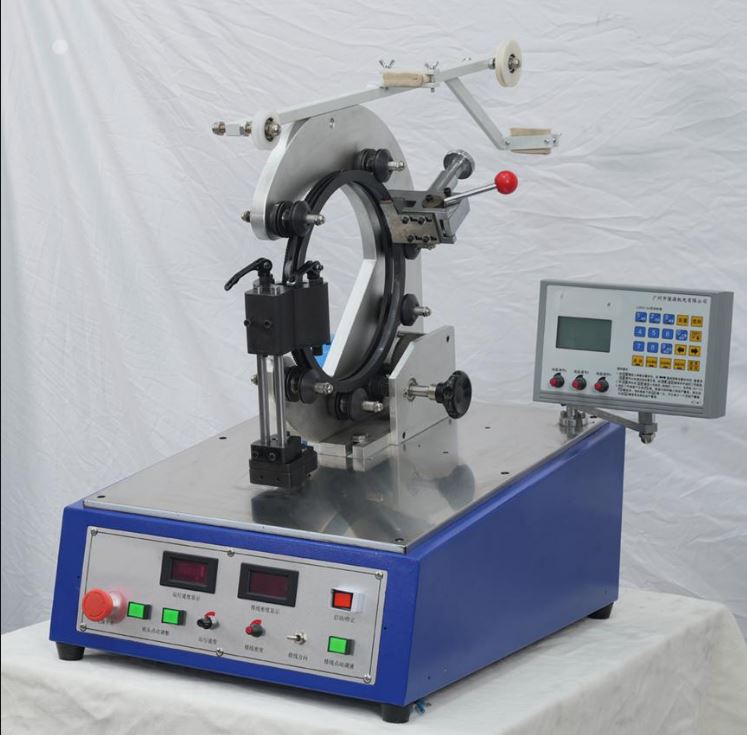

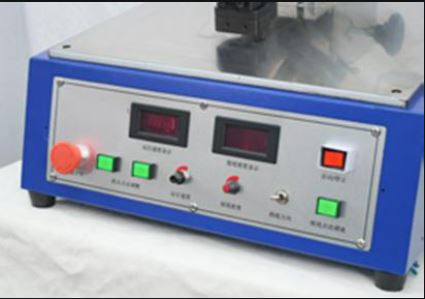

LY3820C LOW-NOISE GEAR-TYPE RING WINDING MACHINE
SPECIFICATION:
device type | toroid coil winding machine |
Equipment model | LY3820C |
Winding method | Full tooth type |
Finally complete the outer diameter | 80-200 mm |
Minimum completed inner diameter | 30 mm |
Maximum completion height | 110 mm |
Suitable winding diameter range | 0.5-2.5 |
Perimeter of storage loop | 820 mm |
Width of storage loop | 4-18 mm |
Maximum speed | 250 RPM |
Working Voltage | 250 V/50 HZ |
Overall dimensions | 650 500 * 700 mm （L*W*H） |
Total machine weight | 100 KG |
Pre programmable program | 50×20Group |
▶ Adopting energy-saving dual frequency conversion drive, energy-saving and energy saving, and capable of infinite speed regulation.
▶ The winding tension can be adjusted at any time during standby and winding process.
▶ It has automatic operation, foot pedal speed regulation operation function, and automatic power-off saving function.

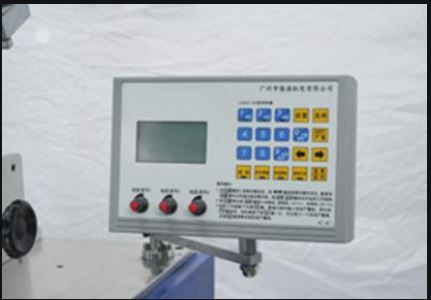

▶ Adopting the latest microcomputer full Chinese LCD display controller, it has practical functions such as multi-stage cable density adjustment, separate setting of storage/ winding speed, etc.
Note:
When winding with a single enameled copper wire or multiple strands in parallel, ensure the combined tensile strength does not exceed the maximum value.
Optional installation of the new automatic wire arrangement control system is available. During parameter setup, simply input the core dimensions, number of turns, and layer count. The controller system automatically calculates wire spacing, eliminating manual adjustments.
