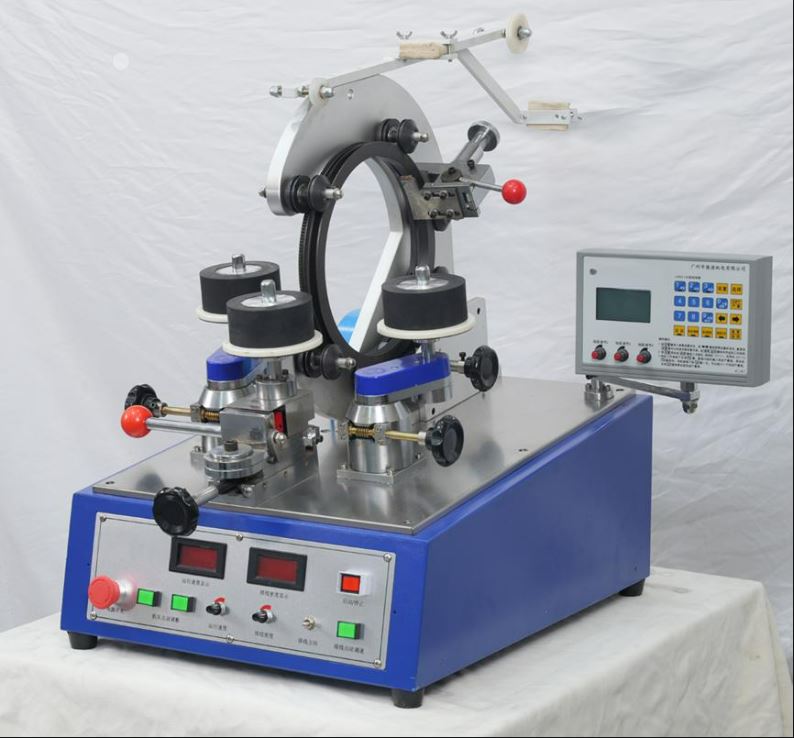

LY3821 Low-noise full tooth medium speed winding machine
SPECIFICATION:Main technical parameters table: (Unit: mm)
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 80-200 mm |
Minimum completed inner diamete | 25 mm |
Maximum completion height | 130 mm |
Suitable winding diameter range | 0.7-2.0 mm |
Diameter of storage ring | 287 mm |
Width of storage loop | 6-15 mm |
Maximum speed | 230 rpm |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimensions | 500 x 600 x 750 mm （L*W*H） |
Total machine weight | 100 KG |
Equipment features
▶ Adopting energy-saving dual frequency conversion drive, energy-saving and energy-saving, and capable of infinite speed regulation.
▶ The winding tension can be adjusted at any time during standby and winding process.
▶ It has automatic operation, foot pedal speed regulation operation function, and automatic power-off saving function.
▶ Adopting the latest microcomputer full Chinese LCD display controller, it has practical functions such as multi-stage cable density adjustment, separate setting of storage/winding speed, etc.
Note: Optional installation of a new automatic wiring control system. When debugging parameters, simply input the size, number of turns, and layer values of the iron core. The controller system will automatically calculate the wiring spacing, saving the trouble of manual adjustment
