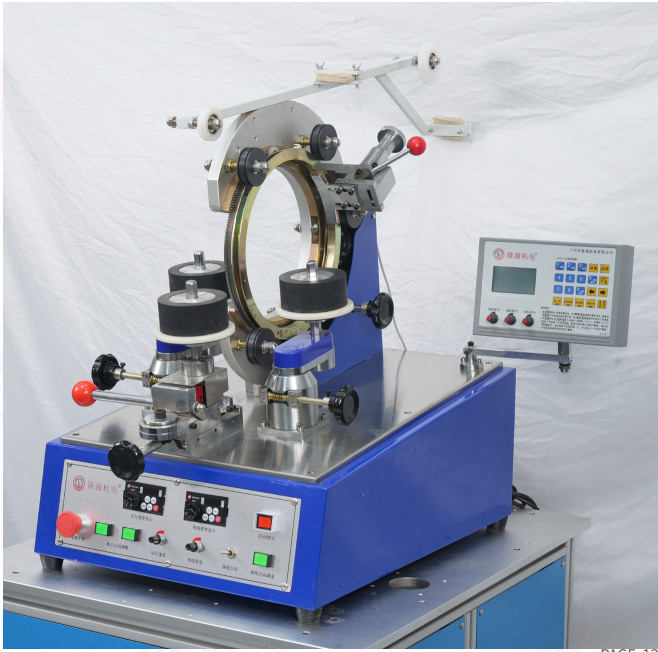

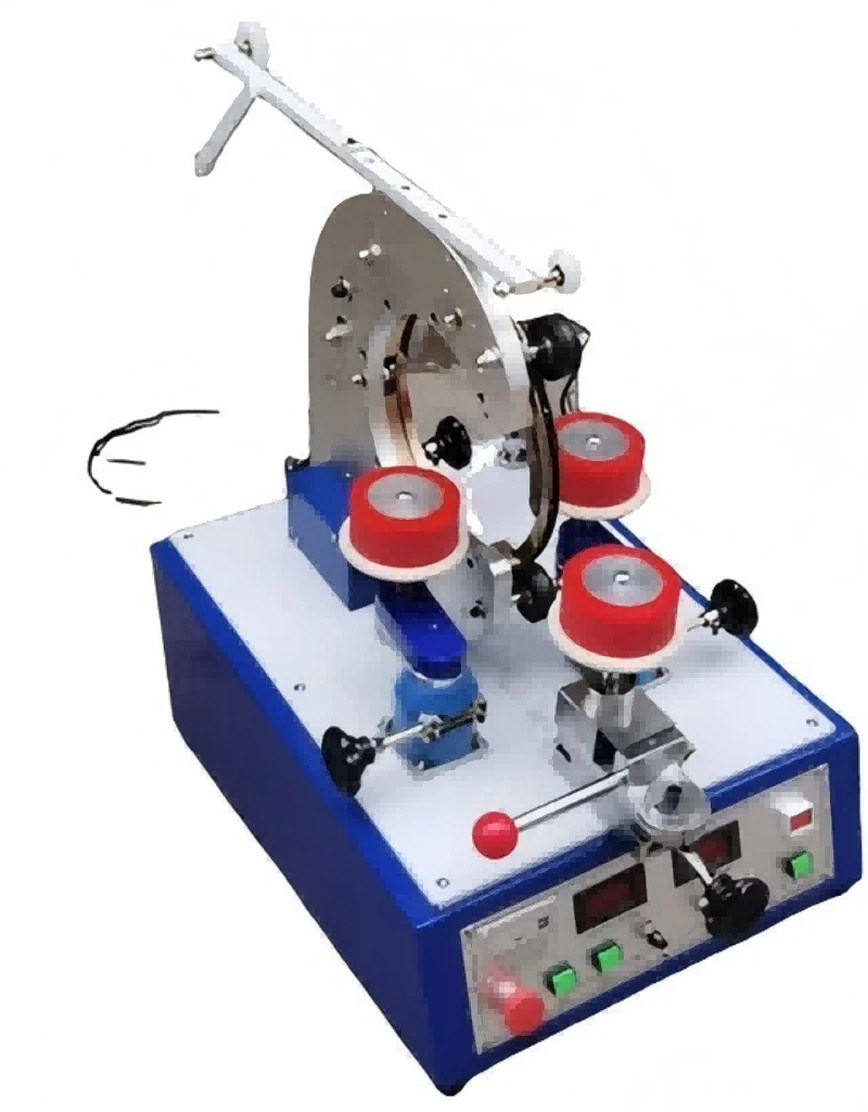

LY4860 Low-noise gear type medium speed winding machine
SPECIFICATION:
device type | toroid coil winding machine |
Winding method | Gear type |
Finally complete the outer diameter | 80-200 mm |
Minimum completed inner diameter | 30 mm |
Maximum completion height | 125 mm |
Suitable winding diameter rang | 0.7-2.5 mm |
Diameter of storage ring | 300 mm |
Width of storage loop | 8-25 mm |
Maximum speed | 230 RPM |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
Overall dimensions | 500x600x800mm （L*W*H） |
Total machine weight | 120 KG |
Equipment features
▶ The spindle is driven by a variable frequency motor, which is energy-saving and capable of infinite speed regulation.
▶ The wiring system adopts a servo stepper motor intelligent automatic wiring control system, and the winding process can be paused or operated at any time.
▶ Powered by a 220V single-phase power supply, convenient for use in various locations.
▶ The winding tension can be adjusted at any time during standby and winding process, and the tension should be kept uniform.
▶ It has automatic operation, foot pedal speed regulation, and power-off memory function.
▶ Adopting the latest microcomputer full Chinese LCD display controller, it has practical functions such as multi-stage cable density adjustment, separate setting of storage/winding speed, and output statistics.
▶ The controller can store up to 1000 sets of work steps and 50 specifications of transformer winding parameters, saving time for repeated machine adjustments when replacing different products to be processed.
