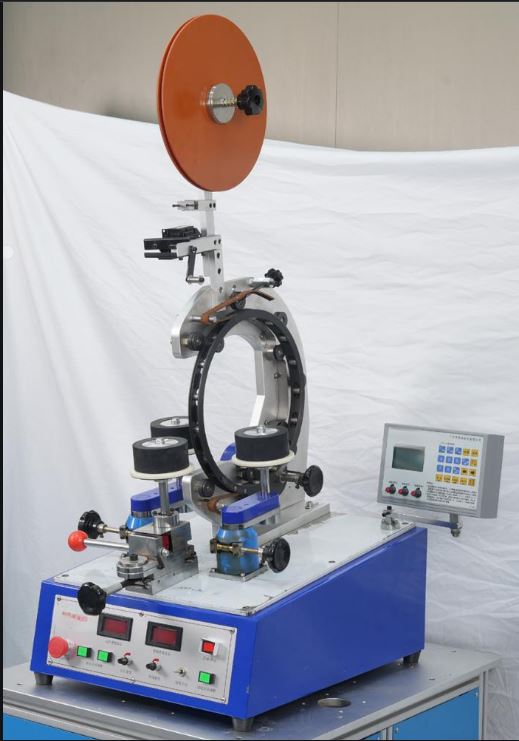

LY5107 High-speed full-toothed belt taping machine
Equipment features
machine type | taping machine |
Suitable winding diameter range | 10-12-15-20 mm (optional)
|
Finally complete the outer diameter | 80-250 mm or 120-320 mm (fixture 2 choose 1) |
Minimum completed inner diameter | 35 mm |
Maximum completion height | 140 mm |
Width of storage loop | 10-20 mm (optional) |
Diameter of storage ring
| 360 mm |
Maximum speed | 230 rpm |
Pre programmable program | 50×20 Group |
Total machine weight | 138 KG |
Working Voltage | 220 V/ 50 HZ |
Overall dimensions | 850 600 1200 mm （L*W*H） |
