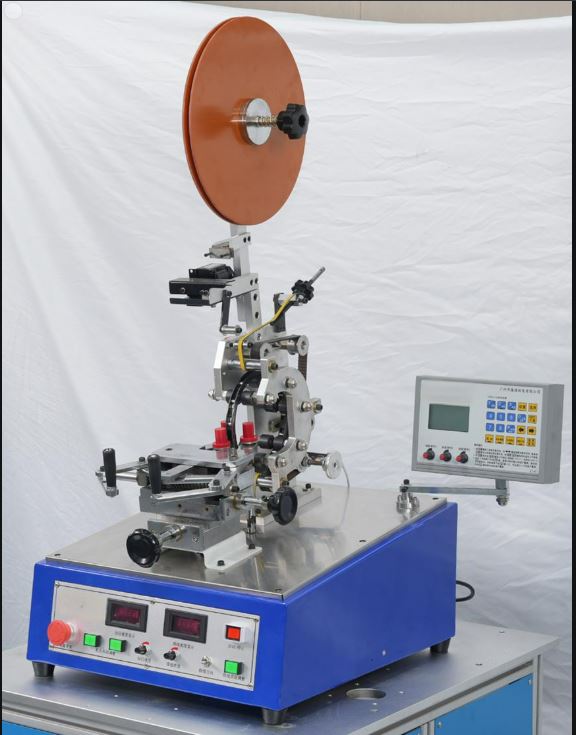

LY5700 Small inner diameter belt-type taping machine
Equipment features
machine type | taping machine |
Suitable winding diameter range | 6-8-10-12 mm (optional)
|
Finally complete the outer diameter | 40-80 mm |
Minimum completed inner diameter | 13 mm |
Maximum completion height | 60 mm |
Width of storage loop | 5- 8-10-12 mm (optional) |
Belt ring diameter
| 230 mm |
Maximum speed | 270 rpm |
Pre programmable program | 50×20 Group |
Total machine weight | 95 KG |
Working Voltage | 220 V/50 HZ |
Overall dimensions | 500 x 600 x 1100 mm（L*W*H） |
Equipment features
▶ Adopting a gearless belt ring transmission method, the inner diameter is 5mm smaller than that of conventional gear type models.
