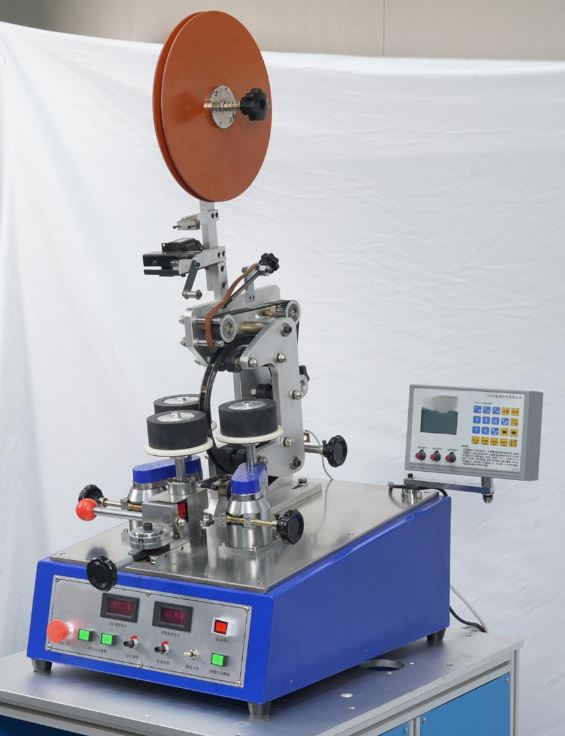

LY5730 Small inner diameter belt-type taping machine

In the high-speed, high-precision world of modern packaging and winding, accuracy and efficiency determine output and cost. Our professional-grade Small-Ciameter Belt-Driven Tape Winding Machine, designed for demanding industrial environments, combines intelligent control, servo drive technology, and exceptional flexibility. It is not just a machine—it is your reliable partner in enhancing production consistency and reducing overall operational costs.

I. Features

1. The internal gear high-speed tape winding machine adopts a two-in-one design of gears and belt loops, featuring high winding speed, a large number of belt loops, and convenient operation. Without affecting product quality, its efficiency is more than 20% higher than traditional gear-type machines, and it can produce tapes with smaller inner diameters.

2. Based on the overall dimensions of the product, determine the inner and outer diameters, number of wraps, and other parameters to calculate the required length of stored tape and select the appropriate model size.

3. Different width belt loops can be used for the same model to meet the storage capacity and finished inner diameter requirements of different product specifications, thus broadening its application range.

4. The clamps have a wide adjustable range, making product clamping simple. Different sized products can be installed by changing the rubber wheels and adjusting the clamps.

5. Suitable for 0.05mm thick PET, JBT, PVC, and other materials in strip form, as well as smooth and frosted non-adhesive films, insulating cloth tapes, and paper tapes.

II. Core Benefits & Value for Customers

* Enhanced Quality & Consistency: 100% rotation accuracy and automatic pitch control ensure every roll is identical in length, thickness, and edge neatness, significantly improving product grade and customer satisfaction.

* Dramatically Improved Productivity: High-speed operation combined with quick parameter changes minimizes downtime, boosting output per operator and accelerating order fulfillment.

* Reduced Operational Costs:

   * Saves Material: Precise control minimizes waste.

   * Saves Labor: High automation and simple operation reduce reliance on skilled labor and lower physical workload.

   * Saves Maintenance: Durable servo system and high-quality mechanical structure ensure reliability and low failure rates.

* Increased Production Flexibility: Dual manual/auto modes and recipe functions enable quick responses to small-batch, high-mix customized orders, helping you seize market opportunities.

* Easy Operation, Lower Skill Barrier: Intuitive touchscreen interaction and clear logic allow new operators to get up to speed quickly, reducing training costs and operational errors.

III. Key Technical Specifications (Quick Reference)

Item Specification

Control System Industrial PLC + 7-inch Color Touchscreen HMI

Drive System 1000W High-Precision Servo Motor

Max. Spindle Speed 250 RPM

Control Modes Fully Automatic / Manual (Direction, Pitch, Speed adjustable)

Compatible Materials Tapes, Polyester Films (PET), and other flexible coiled materials

Core Inner Diameter Optimized for small cores (customization available)

Power Supply 220V / 380V (can be customized per customer region)

Making Precision Winding Simple and Reliable.

Our Small-Ciameter Belt-Driven Tape Winding Machine is a strategic investment to elevate your packaging quality and optimize your production process.

Contact us today for detailed technical documentation or to schedule a live video demonstration. Let us tailor a solution for you.
