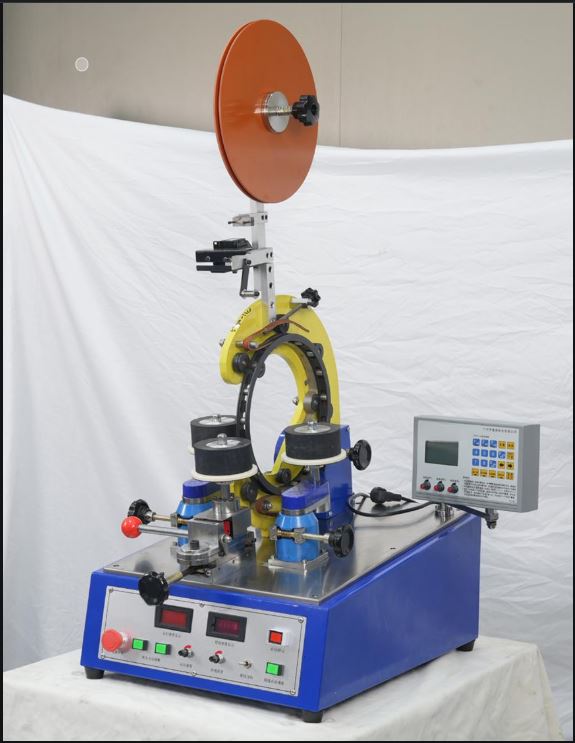

LY5920 High-speed full-toothed belt taping machine
Equipment features
▶ Adopting a gearless belt ring transmission method, the inner diameter is 5mm smaller than that of conventional gear type models.
machine type | taping machine |
Suitable winding diameter range | 10-12-15-18-20 mm |
Finally complete the outer diameter | 80-200 |
Minimum completed inner diameter | 30 mm |
Maximum completion height | 145 mm |
Belt ring diameter | 300 mm |
Maximum speed | 330 rpm |
Overall dimensions | 500 x 600 x 1160 mm（L*W*H） |
Total machine weight | 130 KG |
Working Voltage | 220 V /50 HZ |
Pre programmable program | 50×20 Group |
