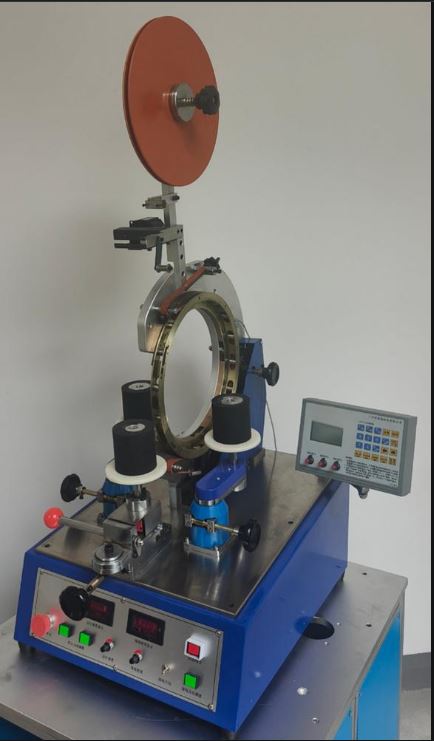

LY6107 Copper ring taping machine
Equipment features
machine type | taping machine |
Suitable winding diameter range | 10-12-15-20 mm (optional)
|
Finally complete the outer diameter | 80-320 mm |
Minimum completed inner diameter | 35 mm |
Belt ring diameter | 300 mm |
Maximum completion height | 130 mm |
Width of storage loop | 8-10-12-15-20 mm |
Maximum speed | 230 rpm |
Pre programmable program | 50×20 Group |
Total machine weight | 138 kg |
Working Voltage | 220 V/50 HZ |
Overall dimensions | 850 600 1200 mm（L*W*H） |
