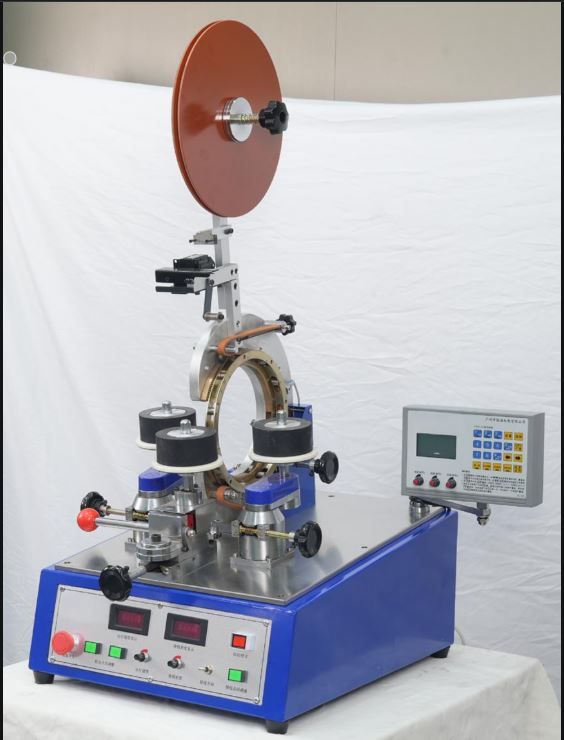

LY6760 Copper ring taping machine
Equipment features
machine type | taping machine |
Finally complete the outer diameter | 70-200 mm |
Suitable winding diameter range | 8-10-12-15 mm |
Max final outer diameter | 60-180 |
Minimum completed inner diameter | 25 mm |
Maximum completion height | 90 mm |
Wrapping Ring Diameter | 250 mm |
Max winding speed | 300 rpm |
Overall dimension | 500 x 600 x 1100 mm（L*W*H） |
total machine weight | 90 KG |
Working Voltage | 220 V/50 HZ |
Pre programmable program | 50×20 Group |
